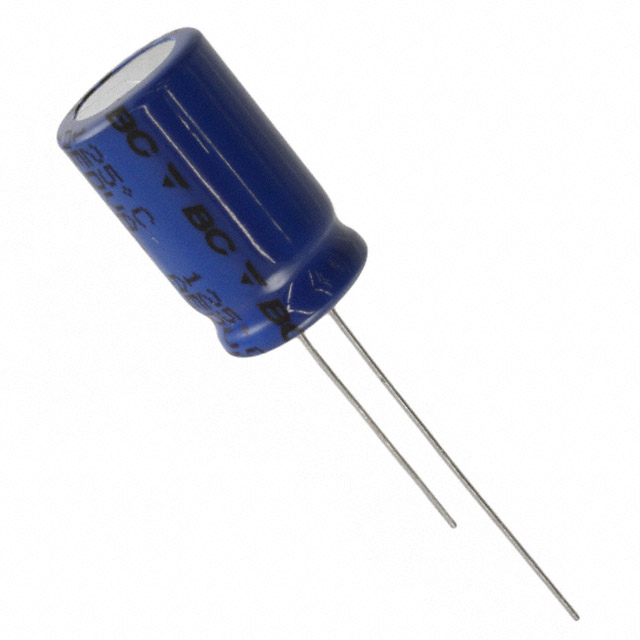

Image is for reference only , See Product Specifications
UFW1E682MHD
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UFW1E682MHD |
| Description: | CAP ALUM 6800UF 20% 25V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UFW |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 6800µF |
| Part Status | Active |
| Applications | Audio |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 25V |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 2.59A @ 120Hz |
| Ripple Current @ High Frequency | 2.9785A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 263 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.19 | $2.15 | $2.10 |
Request Quote
