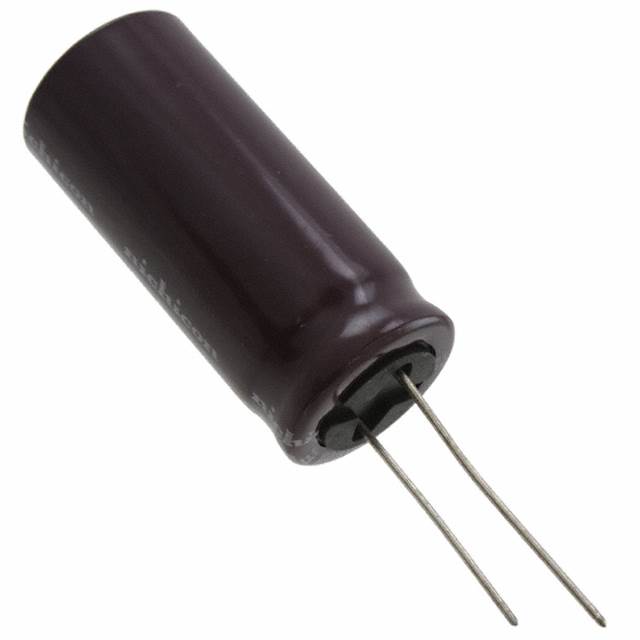

Image is for reference only , See Product Specifications
UBT1A472MHD
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UBT1A472MHD |
| Description: | CAP ALUM 4700UF 20% 10V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UBT |
| Ratings | - |
| Impedance | 20 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 4700µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 10V |
| Lifetime @ Temp. | 10000 Hrs @ 125°C |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 1.816A @ 120Hz |
| Ripple Current @ High Frequency | 2.71A @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 299 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.23 | $2.19 | $2.14 |
