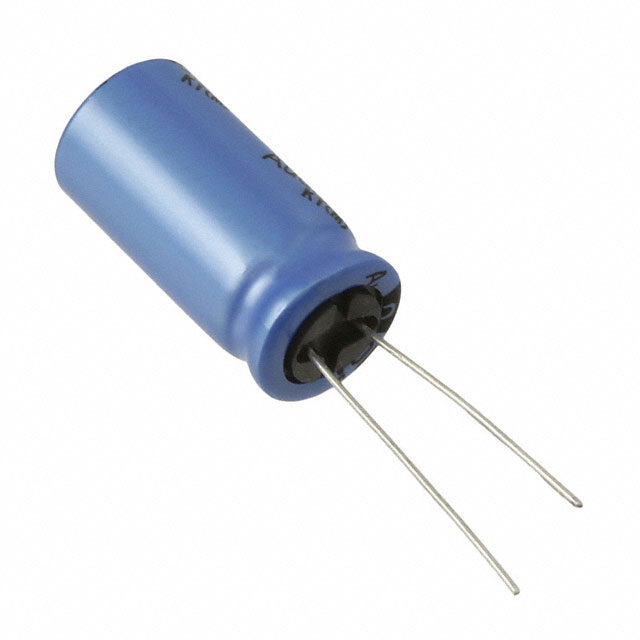

Image is for reference only , See Product Specifications
UBC1C101MNS1GS
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UBC1C101MNS1GS |
| Description: | CAP ALUM 100UF 20% 16V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UBC |
| Ratings | - |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 100µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Operating Temperature | -40°C ~ 150°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Ripple Current @ Low Frequency | 73.7mA @ 120Hz |
| Ripple Current @ High Frequency | 110mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 593 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
