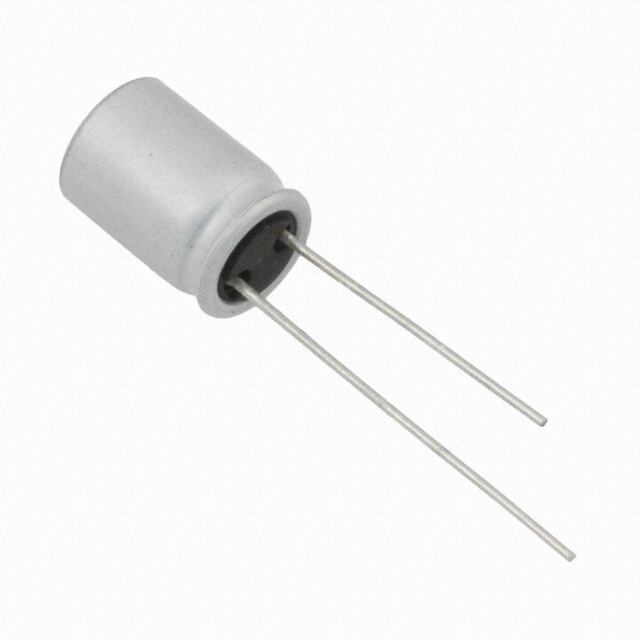

Image is for reference only , See Product Specifications
RNU1A100MDSASQ
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | RNU1A100MDSASQ |
| Description: | CAP ALUM POLY 10UF 20% 10V T/H |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Polymer |
| Series | FPCAP, RNU |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 10µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.059" (1.50mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 10V |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 70mA @ 120Hz |
| Ripple Current @ High Frequency | 700mA @ 100kHz |
| ESR (Equivalent Series Resistance) | 220mOhm |
In Stock 1311 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.67 | $0.66 | $0.64 |
