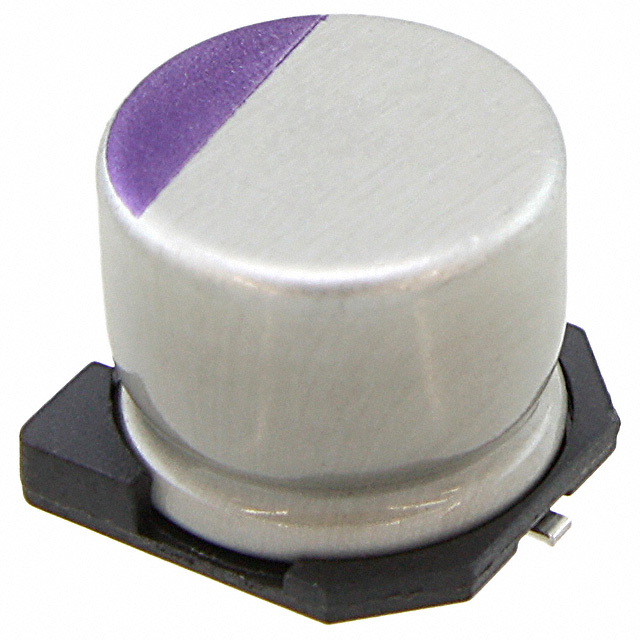

Image is for reference only , See Product Specifications
RNL1C122MDS1PX
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | RNL1C122MDS1PX |
| Description: | CAP ALUM POLY 1200UF 20% 16V T/H |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Polymer |
| Series | FPCAP, RNL |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 1200µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 750mA @ 120Hz |
| Ripple Current @ High Frequency | 7.5A @ 100kHz |
| ESR (Equivalent Series Resistance) | 8mOhm |
In Stock 882 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.91 | $1.87 | $1.83 |
