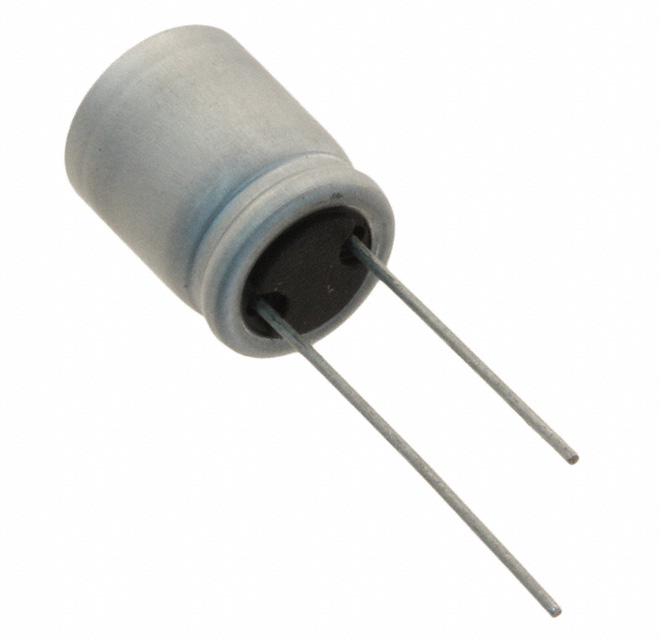

Image is for reference only , See Product Specifications
PCX1C221MCL1GS
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | PCX1C221MCL1GS |
| Description: | CAP ALUM POLY 220UF 20% 16V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Polymer |
| Series | PCX |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 220µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Ripple Current @ High Frequency | 2.3A @ 100kHz |
| ESR (Equivalent Series Resistance) | 27mOhm |
In Stock 3150 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.45 | $2.40 | $2.35 |
