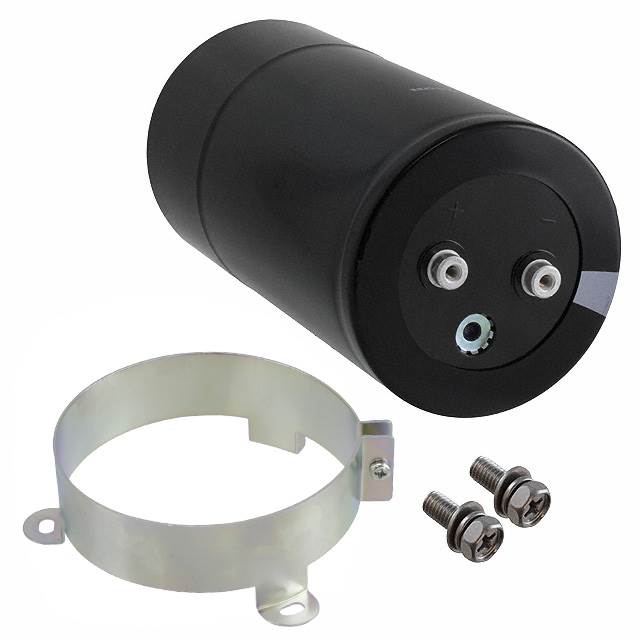

Image is for reference only , See Product Specifications
LNT2H682MSEJ
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | LNT2H682MSEJ |
| Description: | CAP ALUM 6800UF 20% 500V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | LNT |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 6800µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 1.252" (31.80mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 500V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.811" (173.00mm) |
| Operating Temperature | -25°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 20.7A @ 120Hz |
| Ripple Current @ High Frequency | 28.98A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 4 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $229.58 | $224.99 | $220.49 |
