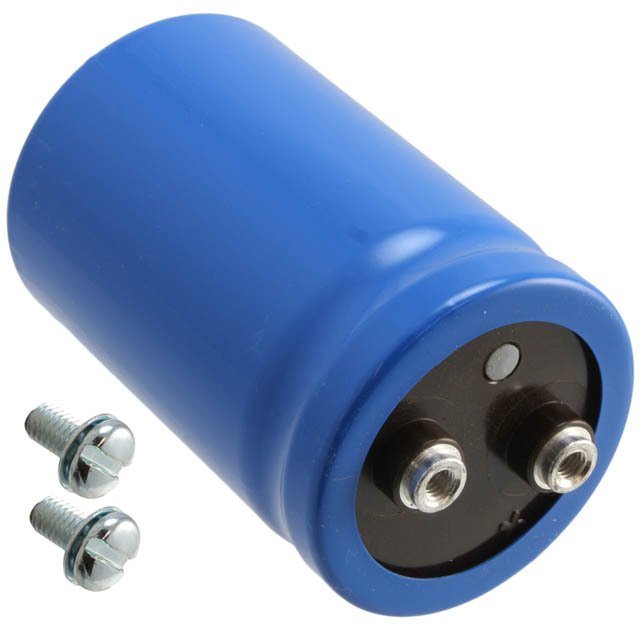

Image is for reference only , See Product Specifications
LNT1C154MSE
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | LNT1C154MSE |
| Description: | CAP ALUM 150000UF 20% 16V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | LNT |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 150000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.866" (22.00mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 11A @ 120Hz |
| Ripple Current @ High Frequency | 12.65A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 3 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $36.93 | $36.19 | $35.47 |
