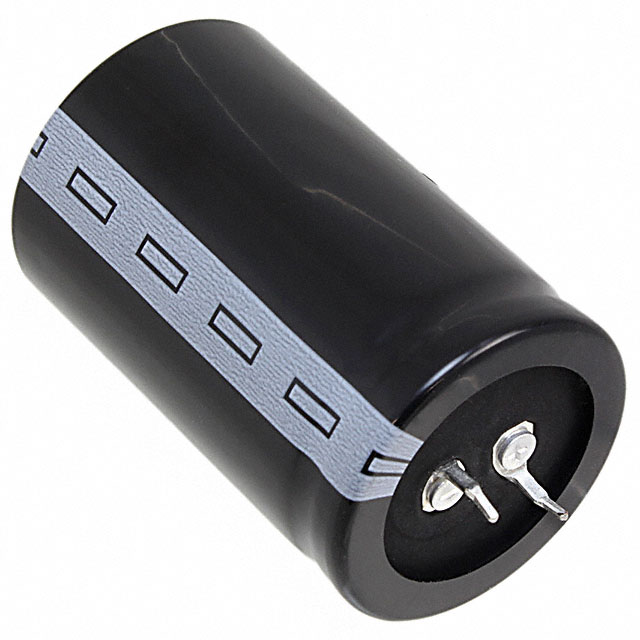

Image is for reference only , See Product Specifications
LNR1K103MSE
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | LNR1K103MSE |
| Description: | CAP ALUM 10000UF 20% 80V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | LNR |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 10000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.500" (12.70mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 80V |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 4.2A @ 120Hz |
| Ripple Current @ High Frequency | 4.83A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 129 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $19.51 | $19.12 | $18.74 |
