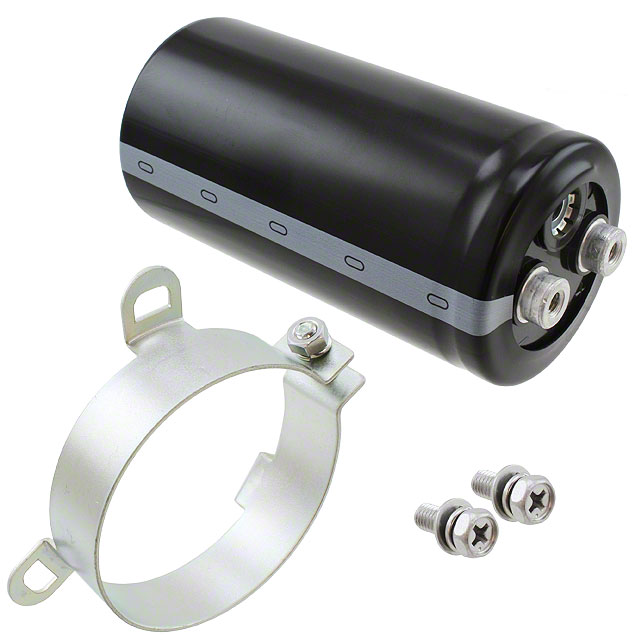

Image is for reference only , See Product Specifications
LNR1C154MSE
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | LNR1C154MSE |
| Description: | CAP ALUM 150000UF 20% 16V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | LNR |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 150000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.866" (22.00mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 11.5A @ 120Hz |
| Ripple Current @ High Frequency | 13.225A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 4 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $36.59 | $35.86 | $35.14 |
