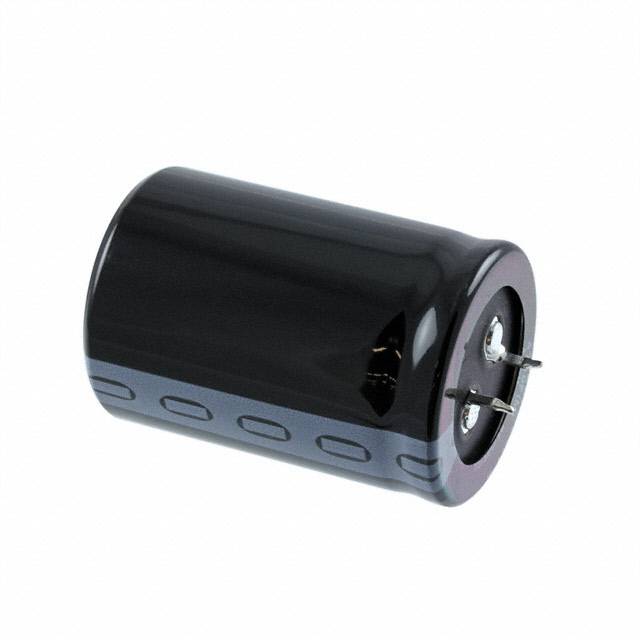

Image is for reference only , See Product Specifications
LGG2P122MELC30
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | LGG2P122MELC30 |
| Description: | CAP ALUM 1200UF 20% 220V SNAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | LGG |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1200µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 220V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 2.35A @ 120Hz |
| Ripple Current @ High Frequency | 3.525A @ 50kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 191 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $8.99 | $8.81 | $8.63 |
