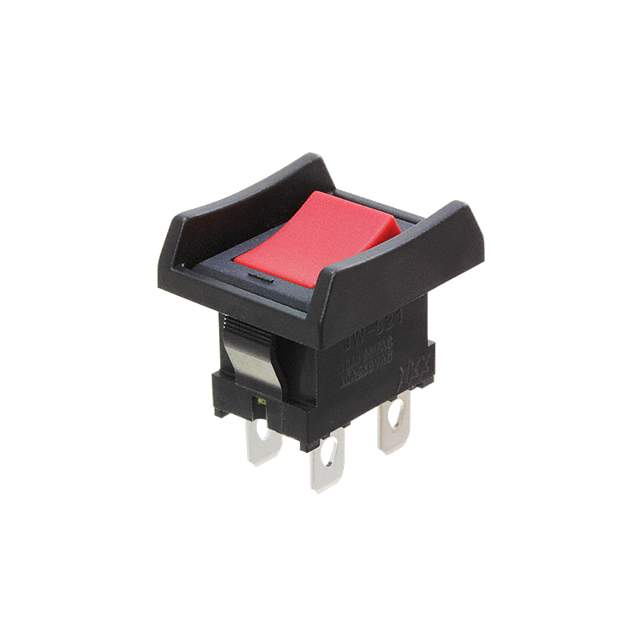

Image is for reference only , See Product Specifications
M2023TJW01-FA
| Manufacturers: | NKK Switches |
|---|---|
| Product Category: | Rocker Switches |
| Data Sheet: | M2023TJW01-FA |
| Description: | SWITCH ROCKER DPDT 6A 125V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NKK Switches |
| Product Category | Rocker Switches |
| Series | M |
| Circuit | DPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Tray |
| Part Status | Active |
| Actuator Type | Concave (Standard V) |
| Mounting Type | Panel Mount, Snap-In |
| Electrical Life | 25,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Switch Function | On-Off-On |
| Actuator Marking | No Marking |
| Termination Style | Solder Lug |
| Ingress Protection | - |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 6A (AC), 3A (DC) |
| Operating Temperature | -30°C ~ 85°C |
| Panel Cutout Dimensions | Rectangular - 15.90mm x 13.10mm |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
In Stock 50 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $8.04 | $7.88 | $7.72 |
