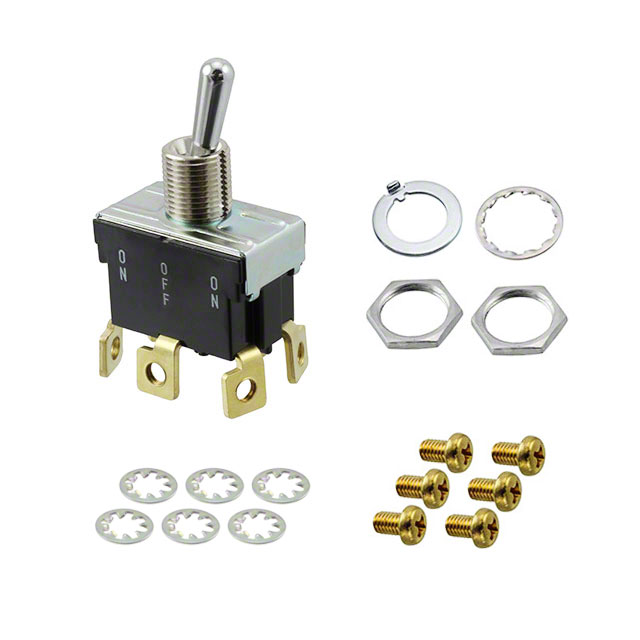

Image is for reference only , See Product Specifications
M2015BB3W01
| Manufacturers: | NKK Switches |
|---|---|
| Product Category: | Toggle Switches |
| Data Sheet: | M2015BB3W01 |
| Description: | SWITCH TOGGLE SPDT 6A 125V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NKK Switches |
| Product Category | Toggle Switches |
| Series | M |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard Round |
| Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 |
| Actuator Length | 11.50mm |
| Electrical Life | 25,000 Cycles |
| Switch Function | On-Mom |
| Actuator Material | Brass, Chrome Plated |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Current Rating (Amps) | 6A (AC), 3A (DC) |
| Operating Temperature | -30°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
In Stock 40 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.52 | $7.37 | $7.22 |
