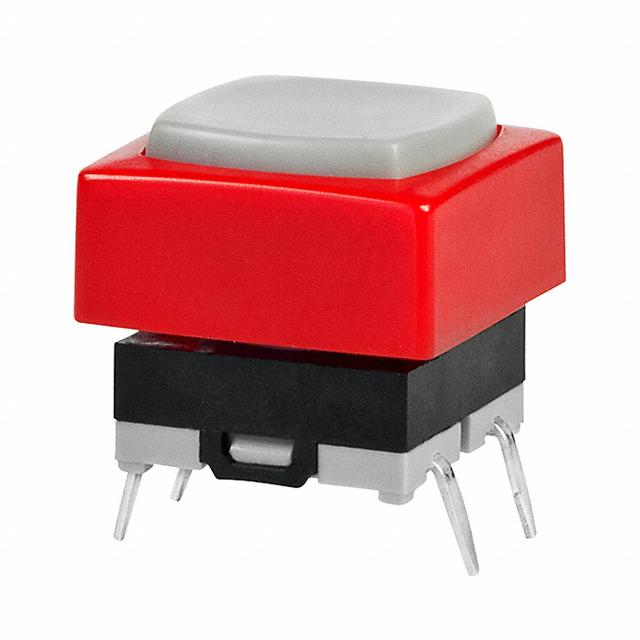

Image is for reference only , See Product Specifications
JB15HAP-5B
| Manufacturers: | NKK Switches |
|---|---|
| Product Category: | Tactile Switches |
| Data Sheet: | JB15HAP-5B |
| Description: | SWITCH TACT SPST-NO 0.125A 24V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NKK Switches |
| Product Category | Tactile Switches |
| Series | JB |
| Circuit | SPST-NO |
| Outline | 10.00mm x 10.00mm |
| Features | Process Sealed |
| Packaging | Tray |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Square Button |
| Mounting Type | Through Hole |
| Switch Travel | 0.30mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 265gf |
| Switch Function | Off-Mom |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | PC Pin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -25°C ~ 70°C |
| Contact Rating @ Voltage | 0.125A @ 24VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 14.70mm |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.03 | $3.95 | $3.87 |
