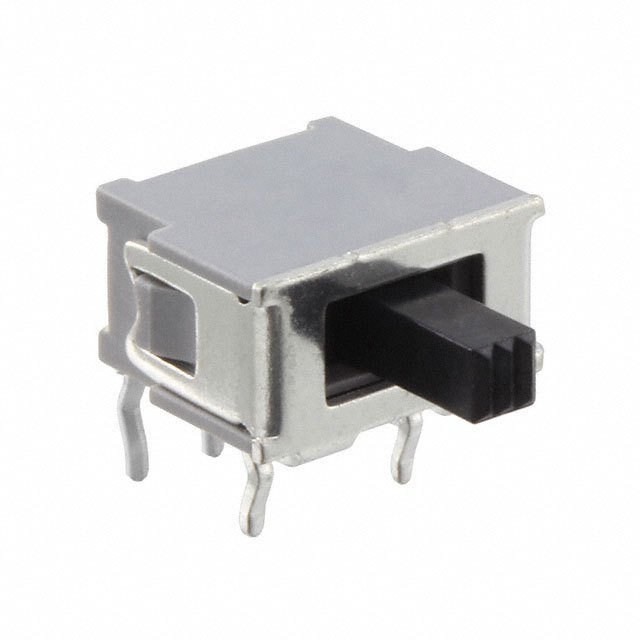

Image is for reference only , See Product Specifications
AS12CV/A
| Manufacturers: | NKK Switches |
|---|---|
| Product Category: | Slide Switches |
| Data Sheet: | AS12CV/A |
| Description: | SWITCH SLIDE SPDT 0.4VA 28V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NKK Switches |
| Product Category | Slide Switches |
| Series | AS |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Tray |
| Part Status | Active |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Switch Travel | 2.50mm |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 3.80mm |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Operating Force | 260gf |
| Switch Function | On-On |
| Contact Material | Phosphor Bronze |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28V |
| Voltage Rating - DC | 28V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
In Stock 60 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.19 | $4.11 | $4.02 |
