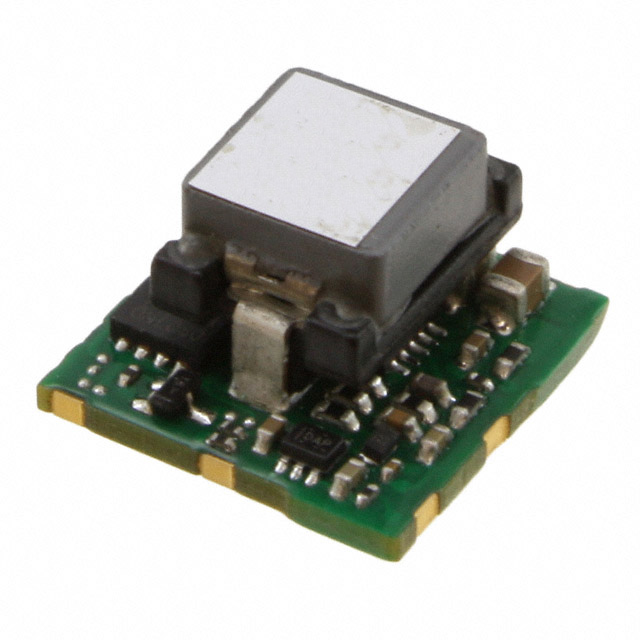

Image is for reference only , See Product Specifications
MGJ1D051905MPC-R7
| Manufacturers: | Murata Power Solutions Inc. |
|---|---|
| Product Category: | DC DC Converters |
| Data Sheet: | MGJ1D051905MPC-R7 |
| Description: | DC DC CONVERTER 19V -5V 1W |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Murata Power Solutions Inc. |
| Product Category | DC DC Converters |
| Type | Isolated Module |
| Series | MGJ1 (1W) |
| Features | SCP |
| Packaging | Cut Tape (CT) |
| Efficiency | 64.5% |
| Part Status | Active |
| Applications | ITE (Commercial), Medical |
| Mounting Type | Surface Mount |
| Power (Watts) | 1W |
| Package / Case | 8-SMD Module |
| Size / Dimension | 0.78" L x 0.59" W x 0.17" H (19.7mm x 15.0mm x 4.4mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 19V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Isolation | 5.2kV |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 42mA, 42mA |
In Stock 128 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.77 | $6.63 | $6.50 |
