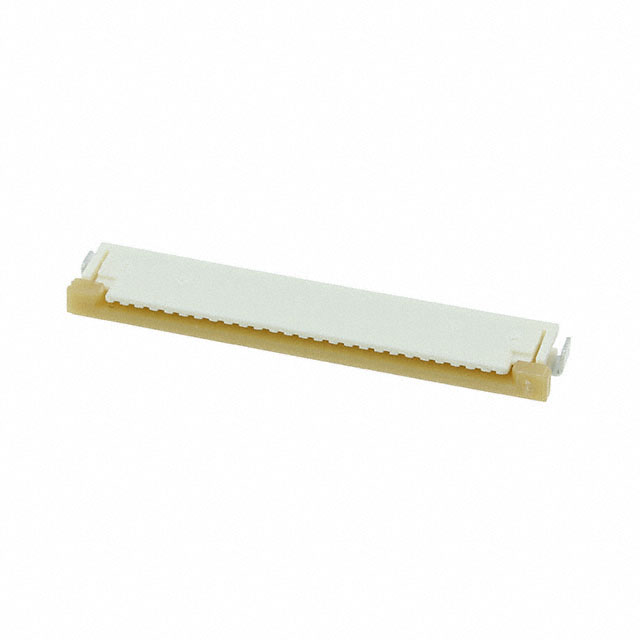

Image is for reference only , See Product Specifications
5016164585
| Manufacturers: | Molex |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | 5016164585 |
| Description: | CONN FPC TOP 45POS 0.30MM R/A |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.012" (0.30mm) |
| Series | Easy-On 501616 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Housing Color | Black |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Gray |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock, Backlock |
| Contact Material | Copper Alloy |
| Actuator Material | Polymer |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.044" (1.12mm) |
| Dielectric Material | Polymer |
| Number of Positions | 45 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Top |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 5499 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
