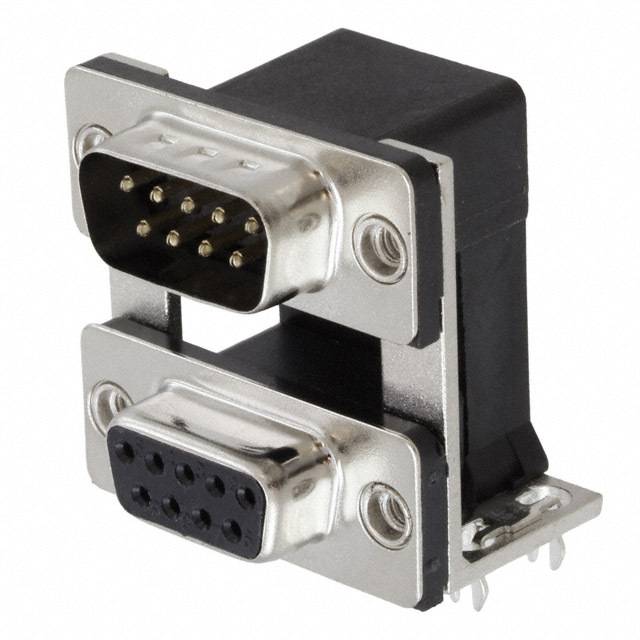

Image is for reference only , See Product Specifications
1727040036
| Manufacturers: | Molex |
|---|---|
| Product Category: | D-Sub Connectors |
| Data Sheet: | 1727040036 |
| Description: | CONN D-SUB RCPT 7POS PNL MNT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | D-Sub Connectors |
| Color | Green |
| Series | 172704 |
| Features | - |
| Packaging | Bulk |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Form | - |
| Contact Type | Signal and Coax or Power (Not Included) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | - |
| Backset Spacing | - |
| Connector Style | D-Sub, Combo |
| Contact Material | Brass |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 7 (5 + 2 Coax or Power) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 130°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
In Stock 45 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.59 | $5.48 | $5.37 |
