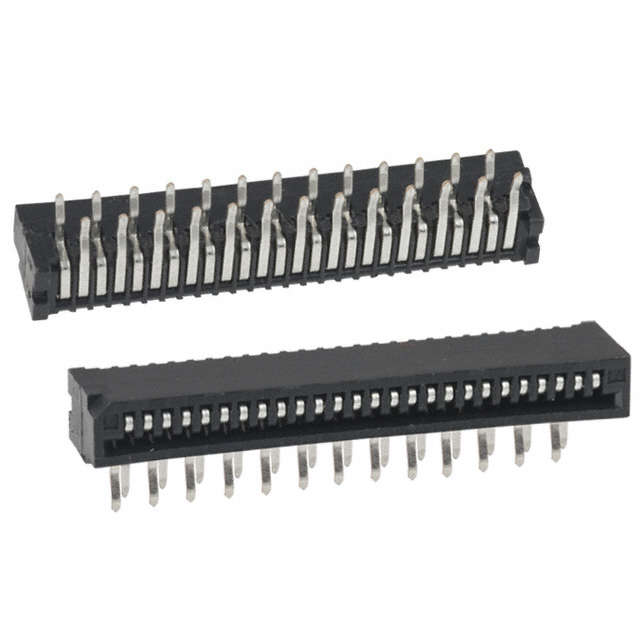

Image is for reference only , See Product Specifications
0520450845
| Manufacturers: | Molex |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | 0520450845 |
| Description: | CONN FFC VERT 8POS 1.25MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.049" (1.25mm) |
| Series | 52045 |
| Features | - |
| Packaging | Tray |
| Part Status | Active |
| Termination | Kinked Pin |
| Housing Color | Gray |
| Mating Cycles | - |
| Mounting Type | Through Hole |
| Actuator Color | - |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 200V |
| Locking Feature | - |
| Contact Material | Phosphor Bronze |
| Actuator Material | - |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.315" (8.00mm) |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester |
| Number of Positions | 8 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | 35.4µin (0.90µm) |
| Material Flammability Rating | UL94 V-0 |
In Stock 1964 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.40 | $0.39 | $0.38 |
