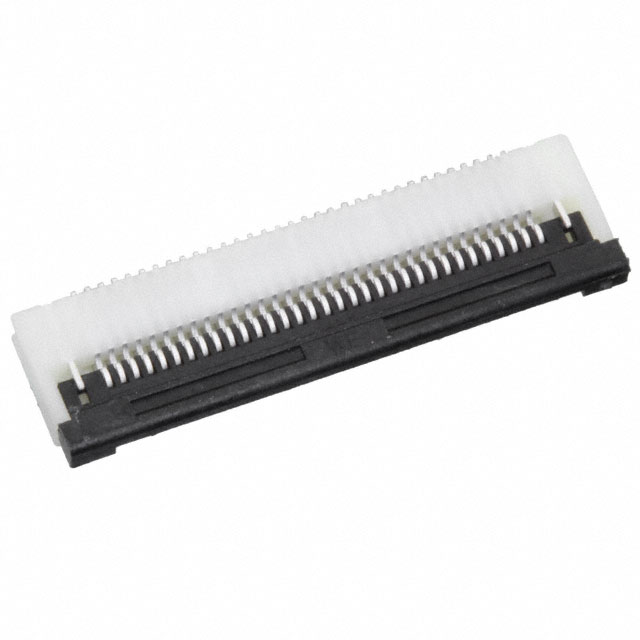

Image is for reference only , See Product Specifications
0520302129
| Manufacturers: | Molex |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | 0520302129 |
| Description: | CONN FPC VERT 21POS 1.00MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.039" (1.00mm) |
| Series | 52030 |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tray |
| Part Status | Active |
| Termination | Kinked Pin |
| Housing Color | - |
| Mating Cycles | - |
| Mounting Type | Through Hole |
| Actuator Color | - |
| Cable End Type | Tapered |
| Contact Finish | Tin Bismuth |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Actuator Material | Polyester |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.205" (5.20mm) |
| Dielectric Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 21 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.30 | $1.27 | $1.25 |
