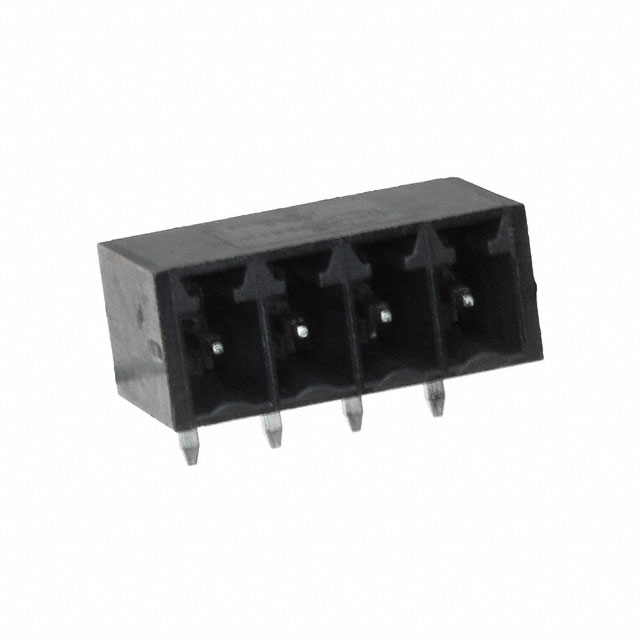

Image is for reference only , See Product Specifications
0395224004
| Manufacturers: | Molex |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | 0395224004 |
| Description: | TERM BLOCK HDR 4POS 90DEG 5MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Series | Eurostyle ESE 39522 |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 15A |
| Voltage - UL | 300V |
| Current - IEC | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Plug Wire Entry | - |
| Contact Material | Brass |
| Number of Levels | 1 |
| Insulation Height | 0.330" (8.38mm) |
| Termination Style | Solder |
| Wire Strip Length | - |
| Header Orientation | 90°, Right Angle |
| Ingress Protection | - |
| Contact Tail Length | 0.170" (4.32mm) |
| Dielectric Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 140°C |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 5720 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.63 | $1.60 | $1.57 |
