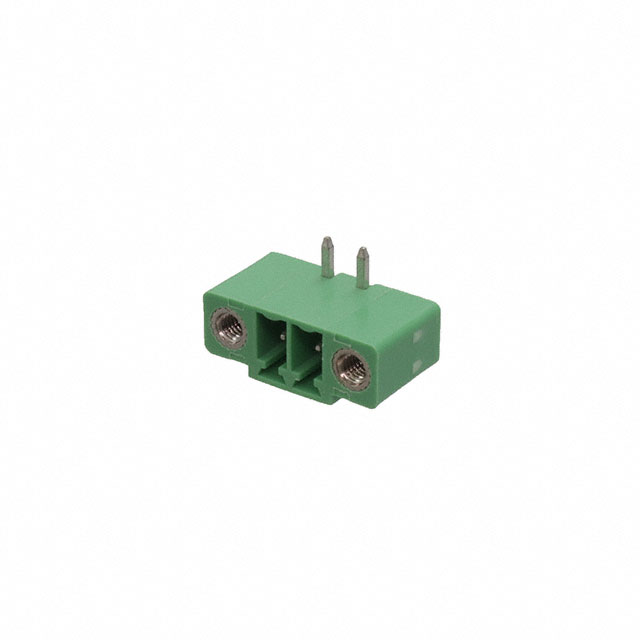

Image is for reference only , See Product Specifications
0395033002
| Manufacturers: | Molex |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | 0395033002 |
| Description: | TERM BLOCK PLUG 2POS 90DEG 3.5MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Plug, Female Sockets |
| Color | Black |
| Pitch | 0.138" (3.50mm) |
| Series | Eurostyle ESE 39503 |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 8A |
| Voltage - UL | 300V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.23 Nm (2.0 Lb-In) |
| Plug Wire Entry | 90° |
| Contact Material | Phosphor Bronze |
| Number of Levels | 1 |
| Insulation Height | 0.740" (18.80mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 6.5mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Dielectric Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 115°C |
| Wire Gauge or Range - AWG | 16-30 AWG |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 1470 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.00 | $0.98 | $0.96 |
