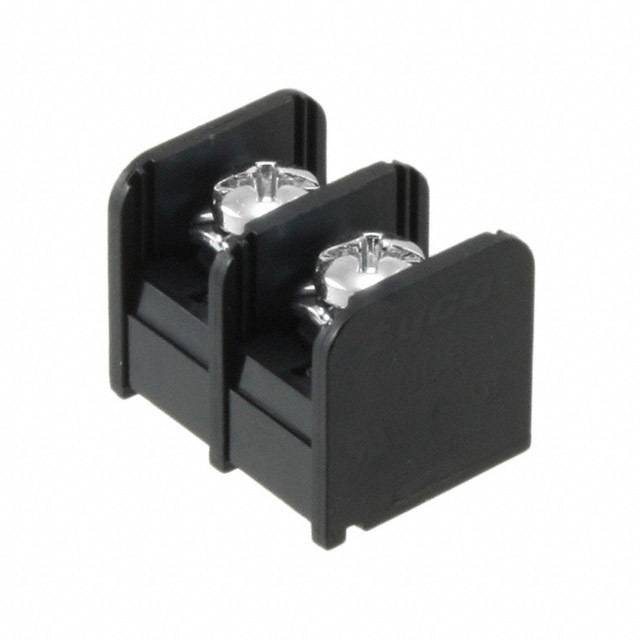

Image is for reference only , See Product Specifications
0389690002
| Manufacturers: | Molex |
|---|---|
| Product Category: | Terminal Blocks - Barrier Blocks |
| Data Sheet: | 0389690002 |
| Description: | CONN BARRIER STRIP 2CIRC 0.5" |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | Terminal Blocks - Barrier Blocks |
| Color | Black |
| Pitch | 0.500" (12.70mm) |
| Series | 38969 |
| Features | - |
| Packaging | Bag |
| Wire Gauge | 8-20 AWG |
| Part Status | Active |
| Barrier Type | 3 Wall (Tri) |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Voltage Rating | 600V |
| Top Termination | Screws with Captive Plate |
| Bottom Termination | PC Pin |
| Number of Circuits | 2 |
| Terminal Block Type | Barrier Block |
| Current Rating (Amps) | 50A |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -40°C ~ 120°C |
| Terminal Screw Finish | Nickel |
| Number of Wire Entries | 2 |
| Terminal Screw Material | Steel |
| Material Flammability Rating | UL94 V-0 |
In Stock 3134 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.60 | $1.57 | $1.54 |
