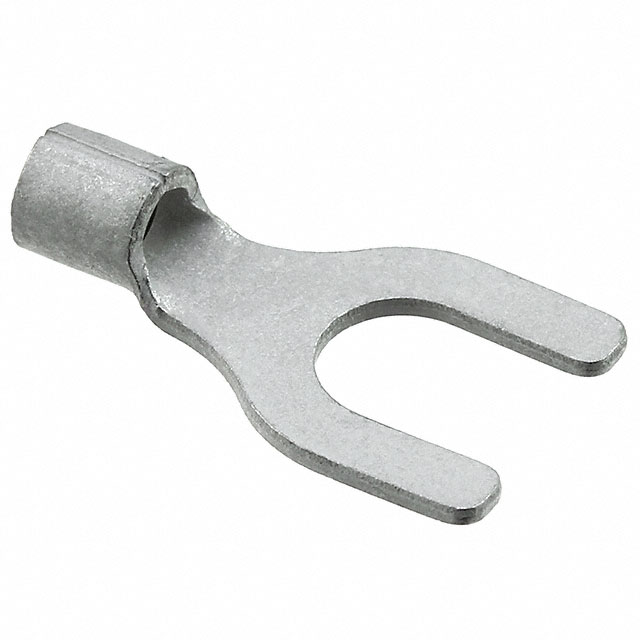

Image is for reference only , See Product Specifications
0191420020
| Manufacturers: | Molex |
|---|---|
| Product Category: | Terminals - Spade Connectors |
| Data Sheet: | 0191420020 |
| Description: | CONN SPADE TERM 14-16AWG #6 BLU |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | Terminals - Spade Connectors |
| Color | Blue |
| Series | InsulKrimp |
| Features | - |
| Packaging | Bulk |
| Insulation | Insulated |
| Wire Gauge | 14-16 AWG |
| Part Status | Active |
| Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Standard |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Length - Overall | 0.834" (21.18mm) |
| Insulation Diameter | 0.175" (4.45mm) |
| Width - Outer Edges | 0.245" (6.22mm) |
| Length - Termination | 0.455" (11.56mm) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Tongue Inside Opening | 0.146" (3.71mm) |
| Length - Ring Center to Termination | 0.209" (5.31mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.10 | $0.10 | $0.10 |
