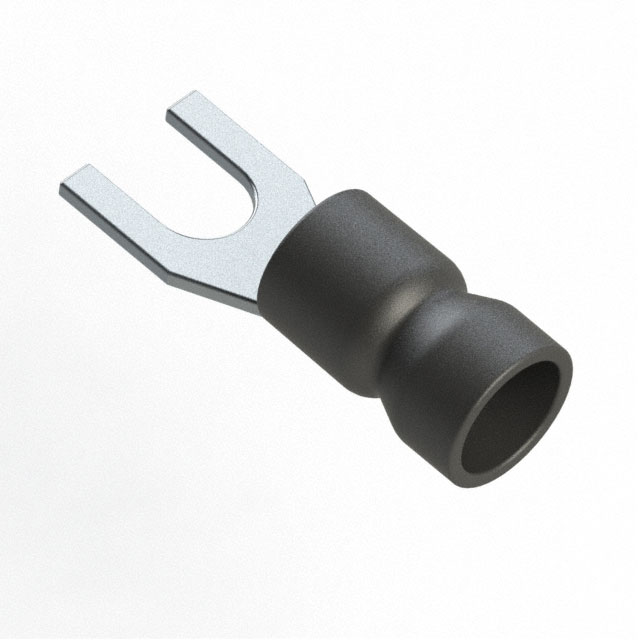

Image is for reference only , See Product Specifications
0191150025
| Manufacturers: | Molex |
|---|---|
| Product Category: | Terminals - Spade Connectors |
| Data Sheet: | 0191150025 |
| Description: | CONN SPADE TERM 14-16AWG #6 BLU |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | Terminals - Spade Connectors |
| Color | Blue |
| Series | Avikrimp |
| Features | - |
| Packaging | Cut Tape (CT) |
| Insulation | Insulated |
| Wire Gauge | 14-16 AWG |
| Part Status | Active |
| Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Spring, Snap |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Length - Overall | 0.825" (20.96mm) |
| Insulation Diameter | 0.170" (4.32mm) |
| Width - Outer Edges | 0.250" (6.35mm) |
| Length - Termination | 0.415" (10.54mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Tongue Inside Opening | 0.114" (2.90mm) |
| Length - Ring Center to Termination | 0.230" (5.84mm) |
In Stock 240 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.47 | $0.46 | $0.45 |
