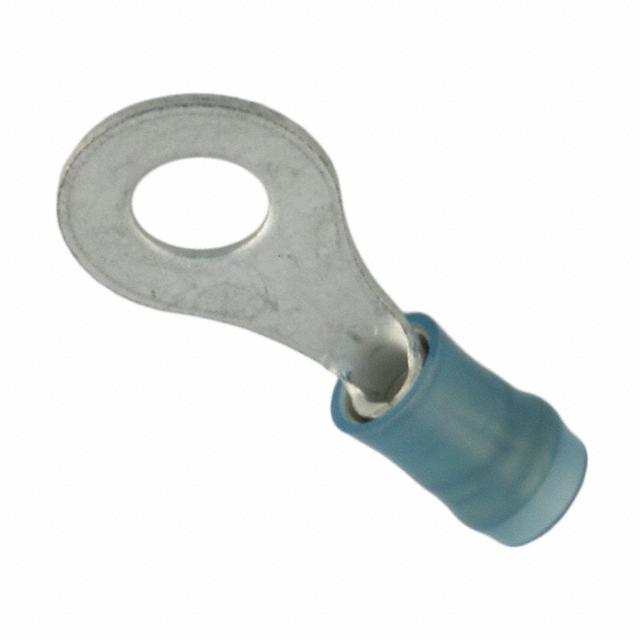

Image is for reference only , See Product Specifications
0190670065
| Manufacturers: | Molex |
|---|---|
| Product Category: | Terminals - Ring Connectors |
| Data Sheet: | 0190670065 |
| Description: | CONN RING CIRC 6AWG #7/16 CRIMP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | Terminals - Ring Connectors |
| Color | Blue |
| Series | NylaKrimp |
| Features | Brazed Seam |
| Packaging | Bulk |
| Thickness | 0.057" (1.45mm) |
| Insulation | Insulated |
| Wire Gauge | 6 AWG |
| Part Status | Active |
| Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 7/16 Stud |
| Terminal Type | Circular |
| Contact Finish | Electro-Tin |
| Contact Material | Copper Alloy |
| Length - Overall | 1.880" (47.75mm) |
| Insulation Diameter | 0.428" (10.87mm) |
| Width - Outer Edges | 0.832" (21.13mm) |
| Material - Insulation | Polyamide (PA), Nylon |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.70 | $0.69 | $0.67 |
