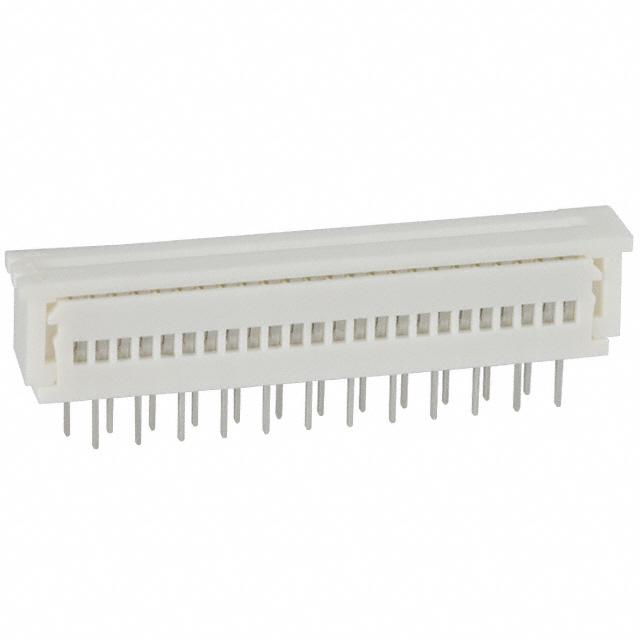

Image is for reference only , See Product Specifications
0039532254
| Manufacturers: | Molex |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | 0039532254 |
| Description: | CONN FFC TOP 25POS 1.25MM R/A |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Molex |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.049" (1.25mm) |
| Series | 5597 |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Housing Color | - |
| Mating Cycles | 30 |
| Mounting Type | Through Hole, Right Angle |
| Actuator Color | - |
| Cable End Type | Straight |
| Contact Finish | Tin Bismuth |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 200V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Actuator Material | Polybutylene Terephthalate (PBT), Polyester |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.213" (5.40mm) |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester |
| Number of Positions | 25 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -20°C ~ 80°C |
| Connector/Contact Type | Contacts, Top |
| Contact Finish Thickness | 39.4µin (1.00µm) |
| Material Flammability Rating | UL94 V-0 |
In Stock 1108 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.32 | $2.27 | $2.23 |
