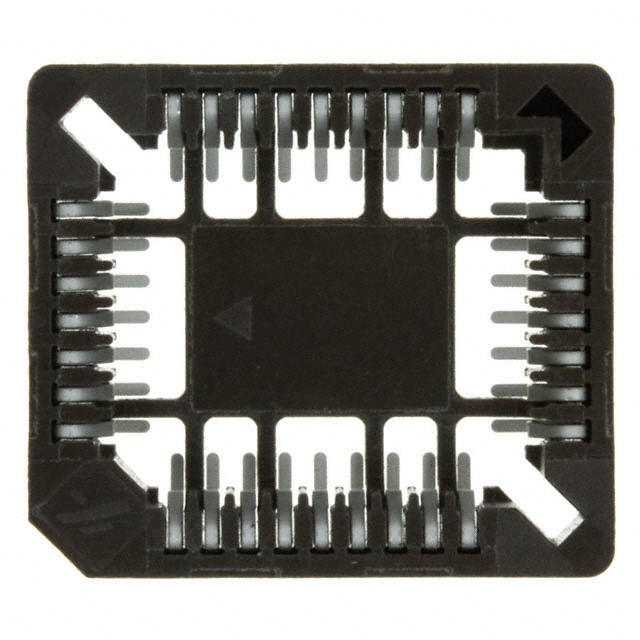

Image is for reference only , See Product Specifications
940-44-032-17-400000
| Manufacturers: | Mill-Max Manufacturing Corp. |
|---|---|
| Product Category: | Sockets for ICs, Transistors |
| Data Sheet: | 940-44-032-17-400000 |
| Description: | CONN SOCKET PLCC 32POS TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Mill-Max Manufacturing Corp. |
| Product Category | Sockets for ICs, Transistors |
| Type | PLCC |
| Series | 940 |
| Features | Closed Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Pitch - Post | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Resistance | 30mOhm |
| Dielectric Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Brass Alloy |
| Termination Post Length | - |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) |
In Stock 32566 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.36 | $1.33 | $1.31 |
