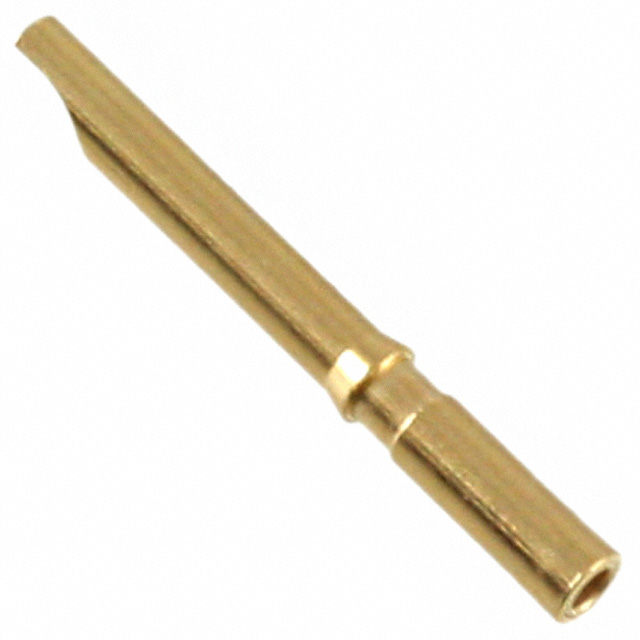

Image is for reference only , See Product Specifications
7405-0-18-15-18-27-10-0
| Manufacturers: | Mill-Max Manufacturing Corp. |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | 7405-0-18-15-18-27-10-0 |
| Description: | CONN PIN RCPT .037-.043 PRESSFIT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Mill-Max Manufacturing Corp. |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | 7405 |
| Features | - |
| Packaging | Bulk |
| Tail Type | Solder Cup |
| Part Status | Active |
| Termination | Press-Fit |
| Socket Depth | 0.220" (5.59mm) |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | - |
| Flange Diameter | 0.090" (2.29mm) |
| Insertion Force | - |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.375" (9.53mm) |
| Pin Hole Diameter | 0.054" (1.37mm) |
| Accepts Pin Diameter | 0.037" ~ 0.043" (0.94mm ~ 1.09mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.084" (2.13mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
In Stock 7732 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.62 | $0.61 | $0.60 |
