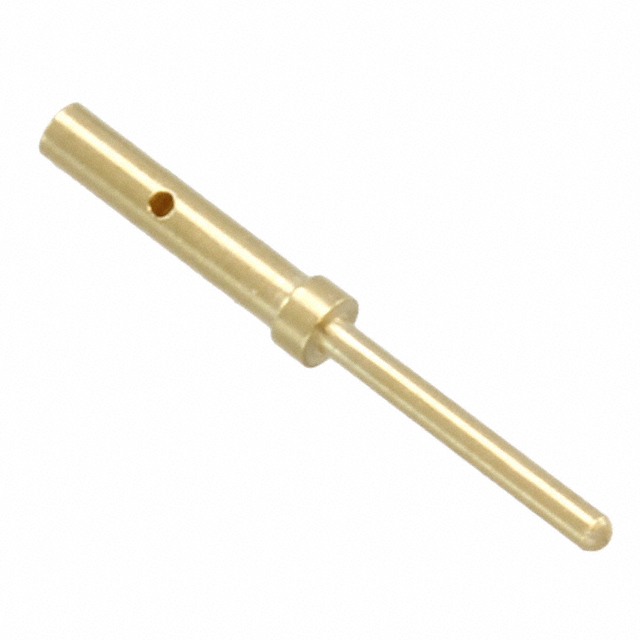

Image is for reference only , See Product Specifications
4717-0-00-80-00-00-08-0
| Manufacturers: | Mill-Max Manufacturing Corp. |
|---|---|
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Data Sheet: | 4717-0-00-80-00-00-08-0 |
| Description: | CONN PC PIN CIRC .062 DIA TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Mill-Max Manufacturing Corp. |
| Product Category | Terminals - PC Pin, Single Post Connectors |
| Series | 4717 |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Swage |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Tin |
| Terminal Style | Single End |
| Board Thickness | - |
| Flange Diameter | 0.114" (2.90mm) |
| Contact Material | Brass Alloy |
| Insulation Color | - |
| Length - Overall | 0.447" (11.35mm) |
| Length - Above Flange | 0.332" (8.43mm) |
| Length - Below Flange | 0.090" (2.29mm) |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.065" (1.65mm) |
| Pin Size - Above Flange | 0.062" (1.57mm) Dia |
| Pin Size - Below Flange | - |
| Contact Finish Thickness | 200.0µin (5.08µm) |
In Stock 17701 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.29 | $0.28 | $0.28 |
