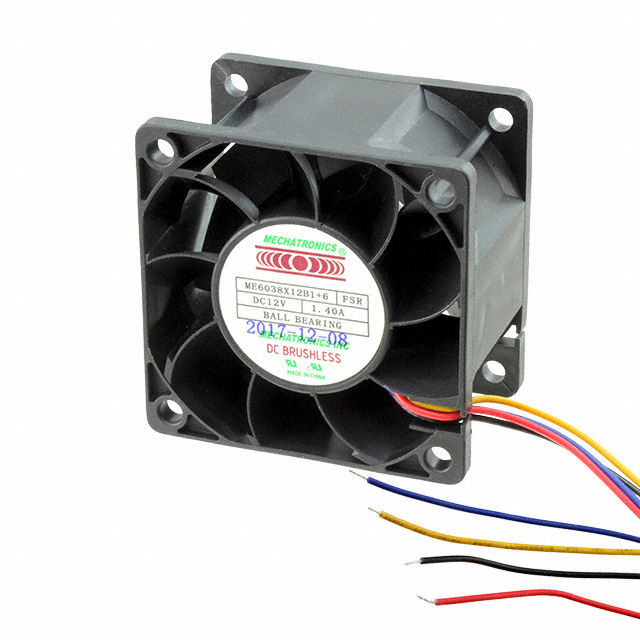

Image is for reference only , See Product Specifications
MQ6038L24B-FSR-PC
| Manufacturers: | Mechatronics Fan Group |
|---|---|
| Product Category: | DC Brushless Fans (BLDC) |
| Data Sheet: | MQ6038L24B-FSR-PC |
| Description: | FAN AXIAL 60X38MM 24VDC WIRE |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Mechatronics Fan Group |
| Product Category | DC Brushless Fans (BLDC) |
| RPM | 8000 RPM |
| Noise | 53.0 dB(A) |
| Width | 38.00mm |
| Series | MQ6038 |
| Weight | 0.234 lb (106.14 g) |
| Air Flow | 44.5 CFM (1.25m³/min) |
| Fan Type | Tubeaxial |
| Features | - |
| Approvals | CE, cUL, TUV, UL |
| Part Status | Active |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Voltage Range | - |
| Static Pressure | 0.910 in H2O (226.7 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 60mm L x 60mm H |
| Ingress Protection | - |
| Current Rating (Amps) | 0.260A |
| Operating Temperature | - |
In Stock 4 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $18.28 | $17.91 | $17.56 |
Request Quote
