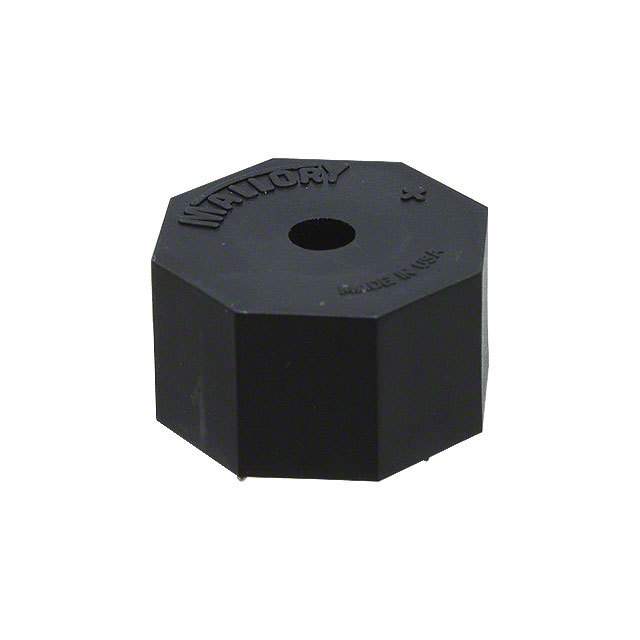

Image is for reference only , See Product Specifications
PFD-27N35WQ
| Manufacturers: | Mallory Sonalert Products Inc. |
|---|---|
| Product Category: | Alarms, Buzzers, and Sirens |
| Data Sheet: | PFD-27N35WQ |
| Description: | AUDIO PIEZO INDICATOR 3-28V CHAS |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Mallory Sonalert Products Inc. |
| Product Category | Alarms, Buzzers, and Sirens |
| Series | PFD |
| Ratings | - |
| Duration | 3 PPS |
| Approvals | - |
| Frequency | 3.5kHz |
| Packaging | Bulk |
| Input Type | DC |
| Technology | Piezo |
| Part Status | Active |
| Termination | Wire Leads |
| Mounting Type | Panel Mount, Flange |
| Port Location | Top |
| Voltage Range | 3 ~ 28V |
| Operating Mode | Pin Selectable |
| Voltage - Rated | 12V |
| Current - Supply | 15mA |
| Driver Circuitry | Indicator, Internally Driven |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.638" (16.20mm) |
| Operating Temperature | -20°C ~ 70°C |
| Sound Pressure Level (SPL) | 90dB @ 12V, 30cm |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.08 | $6.94 | $6.80 |
