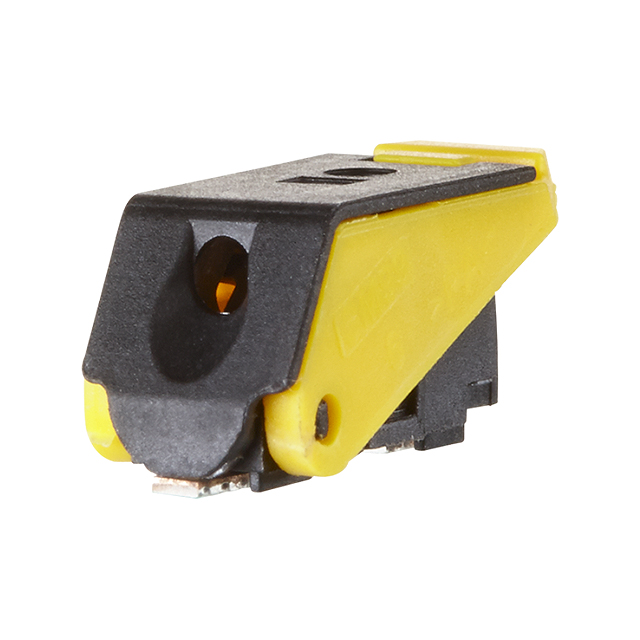

Image is for reference only , See Product Specifications
SM99S01VBNN02G7
| Manufacturers: | METZ CONNECT USA Inc. |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | SM99S01VBNN02G7 |
| Description: | TERM BLOCK 1POS SIDE ENTRY SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | METZ CONNECT USA Inc. |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Yellow |
| Pitch | - |
| Series | - |
| Current | 9A |
| Voltage | 300V |
| Features | Push Button Actuated |
| Packaging | Digi-Reel® |
| Wire Gauge | 16-24 AWG |
| Part Status | Active |
| Screw Thread | - |
| Mounting Type | Surface Mount |
| Torque - Screw | - |
| Number of Levels | 1 |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Mating Orientation | Horizontal with Board |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Positions Per Level | 1 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Steel |
| Screw Material - Plating | - |
| Contact Material - Plating | Copper Alloy - Tin Plated |
In Stock 6539 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
