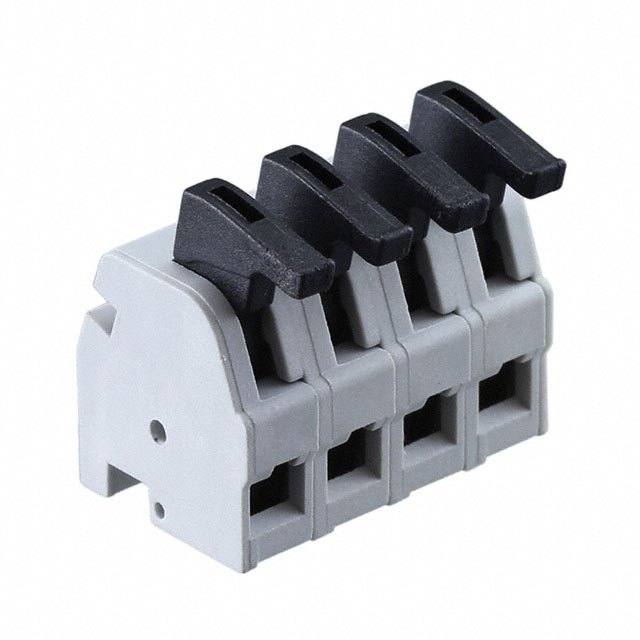

Image is for reference only , See Product Specifications
ASP0250404
| Manufacturers: | METZ CONNECT USA Inc. |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | ASP0250404 |
| Description: | SPRING CLAMP TERMINAL BLOCK, PLU |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | METZ CONNECT USA Inc. |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Plug for Unshrouded Header |
| Color | Gray |
| Pitch | 0.197" (5.00mm) |
| Series | - |
| Features | Lever Actuated |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 8A |
| Voltage - UL | 300V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | - |
| Plug Wire Entry | 90° |
| Contact Material | Copper Alloy |
| Number of Levels | 1 |
| Insulation Height | 0.543" (13.80mm) |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Wire Strip Length | - |
| Header Orientation | - |
| Ingress Protection | IP20 |
| Contact Tail Length | - |
| Dielectric Material | Polyamide (PA46), Nylon 4/6 |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 0.08-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 289 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $3.15 | $3.09 | $3.03 |
