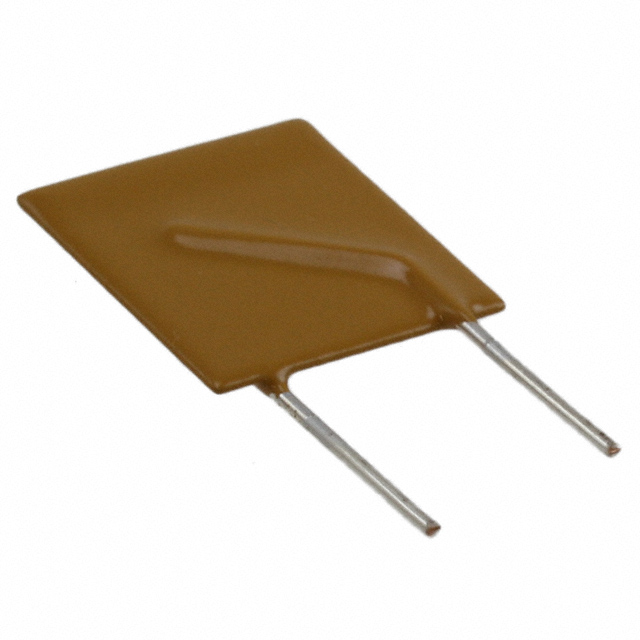

Image is for reference only , See Product Specifications
TRF250-120T-R1-B-0.5
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | TRF250-120T-R1-B-0.5 |
| Description: | PTC RESET FUSE 60V 120MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, TRF250 |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.197" (5.00mm) |
| Time to Trip | 1s |
| Current - Max | 3A |
| Mounting Type | Through Hole |
| Voltage - Max | 60V (250V Int) |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.256" L x 0.181" W (6.50mm x 4.60mm) |
| Current - Trip (It) | 240mA |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 120mA |
| Resistance - Initial (Ri) (Min) | 6 Ohms |
| Resistance - Post Trip (R1) (Max) | 16 Ohms |
In Stock 793 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.80 | $0.78 | $0.77 |
