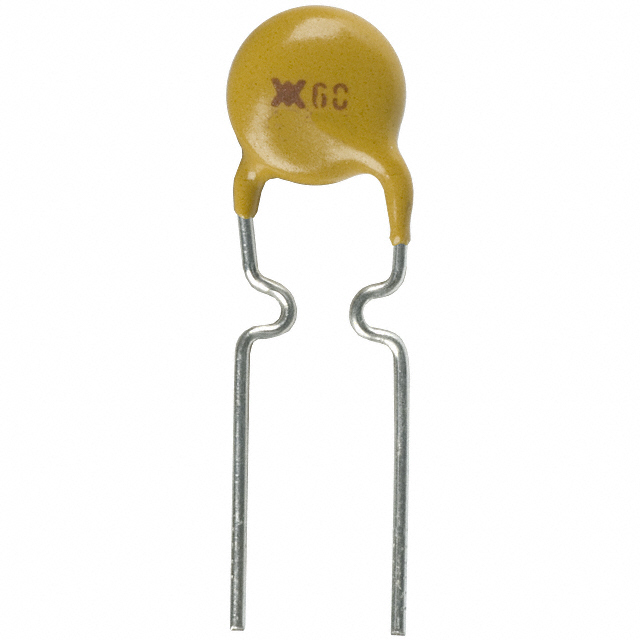

Image is for reference only , See Product Specifications
TR250-145U
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | TR250-145U |
| Description: | PTC RESET FUSE 250V 145MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch® |
| Ratings | - |
| Approvals | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Lead Spacing | 0.197" (5.00mm) |
| Time to Trip | 2s |
| Current - Max | 3A |
| Mounting Type | Through Hole |
| Voltage - Max | 250V (60V Int) |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.236" L x 0.150" W (6.00mm x 3.80mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 145mA |
| Resistance - Initial (Ri) (Min) | 3.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 12 Ohms |
