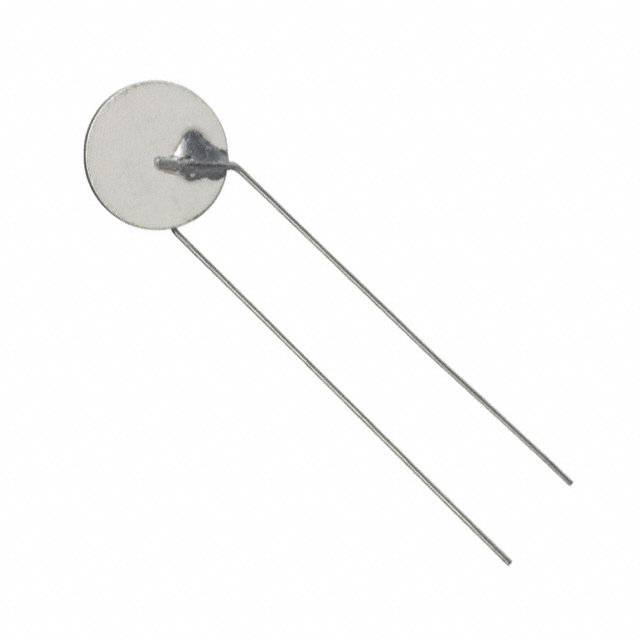

Image is for reference only , See Product Specifications
SRP175
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | SRP175 |
| Description: | PTC RESET FUSE 15V 1.75A STRAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, SRP |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Bulk |
| Part Status | Obsolete |
| Lead Spacing | - |
| Time to Trip | 5s |
| Current - Max | 100A |
| Mounting Type | User Defined |
| Voltage - Max | 15V |
| Package / Case | Strap |
| Thickness (Max) | 0.039" (1.00mm) |
| Size / Dimension | 0.866" L x 0.199" W (22.00mm x 5.05mm) |
| Current - Trip (It) | 3.8A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 1.75A |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
