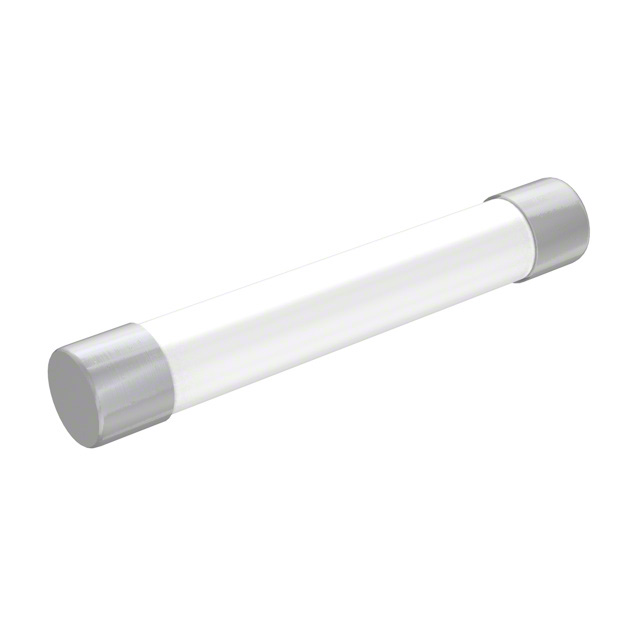

Image is for reference only , See Product Specifications
SPFJ160.X
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | Electrical, Specialty Fuses |
| Data Sheet: | SPFJ160.X |
| Description: | FUSE CARTRIDGE 160A 600VAC/1KVDC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | Electrical, Specialty Fuses |
| Class | J |
| Series | POWR-GARD® SPFJ |
| Features | - |
| Approvals | CE, cULus, UL, VDE |
| Fuse Type | Cartridge |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Solar (Photovoltaic) |
| Melting I²t | 19053 |
| Mounting Type | Holder |
| Response Time | Fast Blow |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 1.500" Dia x 5.670" L (38.10mm x 144.02mm) |
| DC Cold Resistance | 0.613 mOhms |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 1kV |
| Current Rating (Amps) | 160A |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $120.33 | $117.92 | $115.56 |
