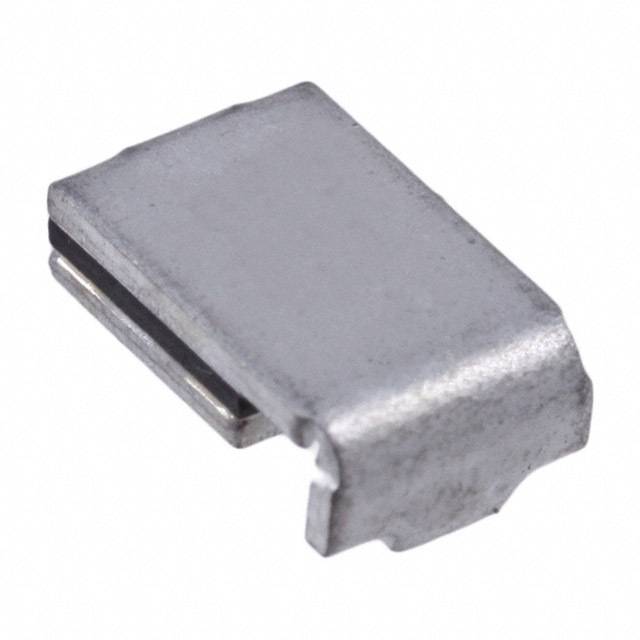

Image is for reference only , See Product Specifications
SMD050F-2
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | SMD050F-2 |
| Description: | PTC RESET FUSE 60V 500MA 2SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, SMD |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Lead Spacing | - |
| Time to Trip | 4s |
| Current - Max | 10A |
| Mounting Type | Surface Mount |
| Voltage - Max | 60V |
| Package / Case | 2-SMD |
| Thickness (Max) | 0.125" (3.18mm) |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Current - Trip (It) | 1A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 500mA |
| Resistance - Initial (Ri) (Min) | 350 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.4 Ohms |
In Stock 7353 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
