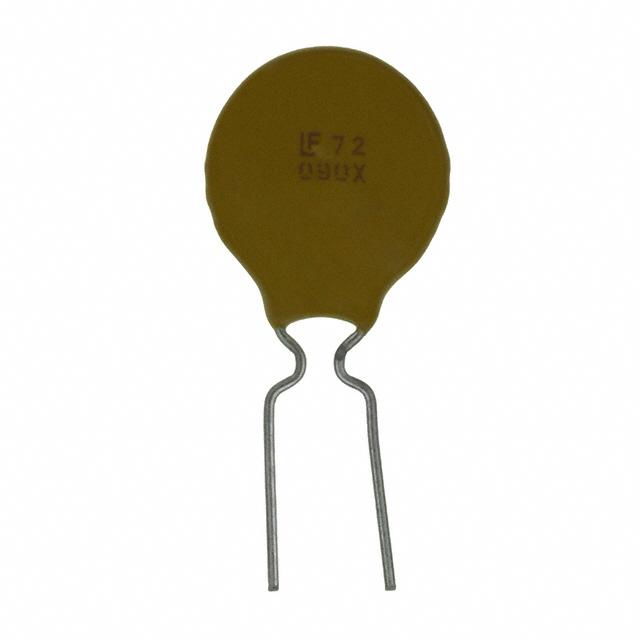

Image is for reference only , See Product Specifications
RUSBF090
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | RUSBF090 |
| Description: | PTC RESET FUSE 16V 900MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, RUSBF |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.199" (5.05mm) |
| Time to Trip | 1.2s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) |
| Current - Trip (It) | 1.8A |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 900mA |
| Resistance - Initial (Ri) (Min) | 70 mOhms |
| Resistance - Post Trip (R1) (Max) | 180 mOhms |
In Stock 583 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.50 | $0.49 | $0.48 |
