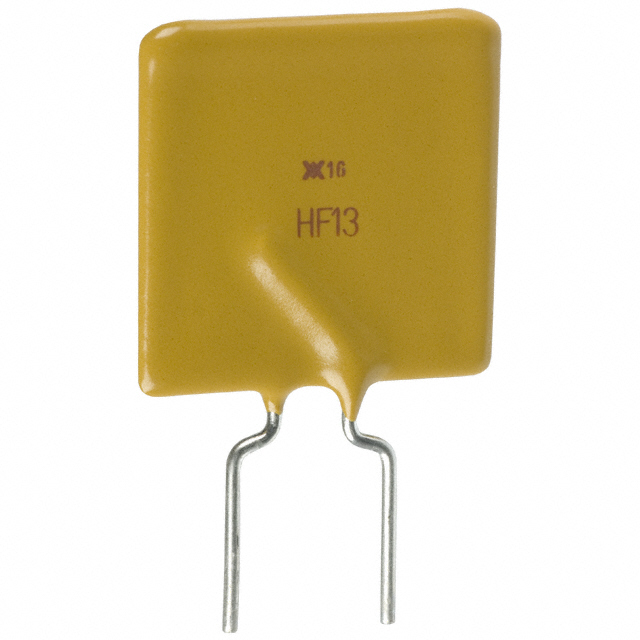

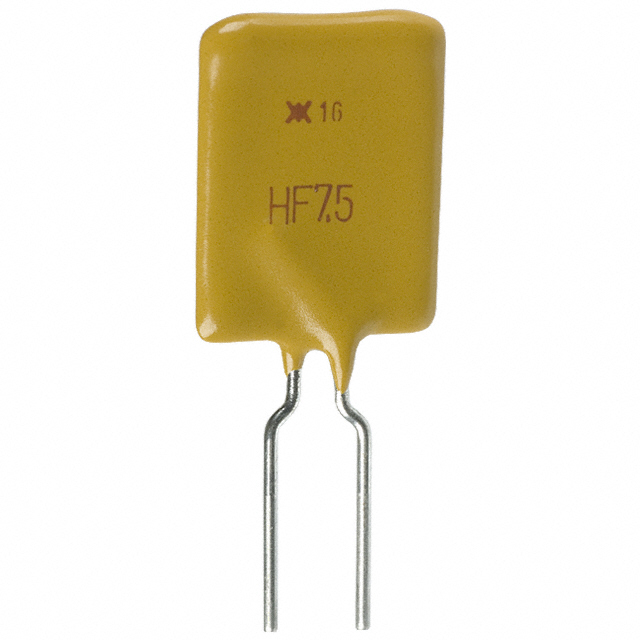

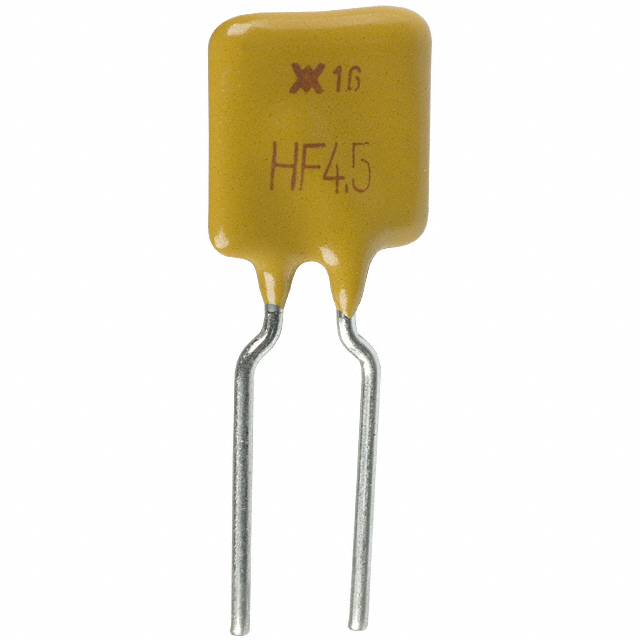

Image is for reference only , See Product Specifications
RUSB160
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | RUSB160 |
| Description: | PTC RESET FUSE 16V 1.6A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch® |
| Ratings | - |
| Approvals | CSA, TUV, UR |
| Packaging | Bulk |
| Part Status | Obsolete |
| Lead Spacing | 0.199" (5.05mm) |
| Time to Trip | 9s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.350" L x 0.118" W (8.90mm x 3.00mm) |
| Current - Trip (It) | 3.2A |
| Height - Seated (Max) | 0.598" (15.20mm) |
| Operating Temperature | - |
| Current - Hold (Ih) (Max) | 1.6A |
| Resistance - Initial (Ri) (Min) | 300 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
