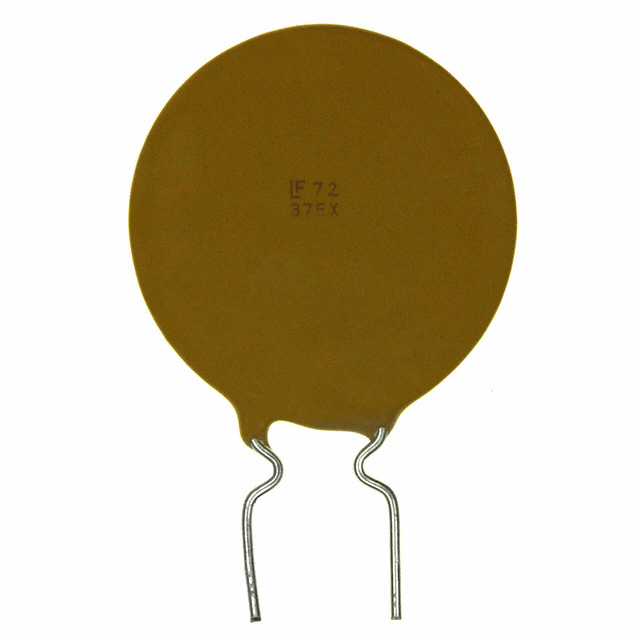

Image is for reference only , See Product Specifications
RHEF550
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | RHEF550 |
| Description: | PTC RESET FUSE 16V 5.5A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, RHEF |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.199" (5.05mm) |
| Time to Trip | 6s |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) |
| Current - Trip (It) | 10A |
| Height - Seated (Max) | 0.744" (18.90mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 5.5A |
| Resistance - Initial (Ri) (Min) | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 37 mOhms |
In Stock 4860 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.74 | $0.73 | $0.71 |
