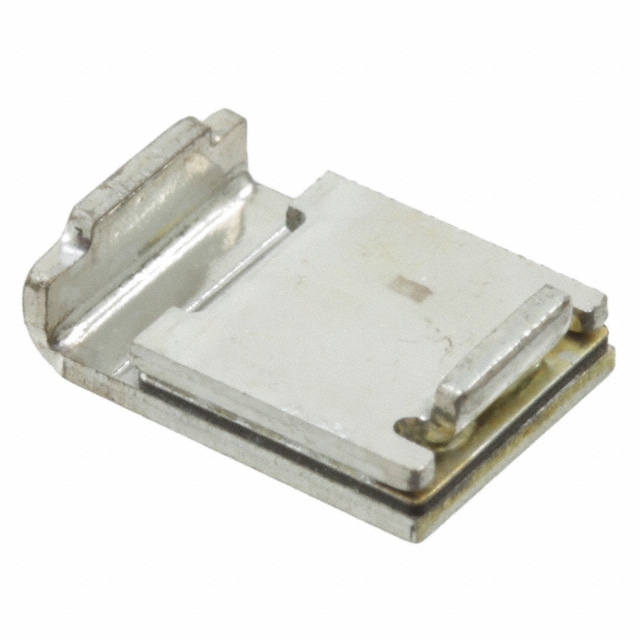

Image is for reference only , See Product Specifications
MINIASMDC075F/33-2
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | MINIASMDC075F/33-2 |
| Description: | PTC RESET FUSE 750MA 33V 1812 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, miniASMD |
| Ratings | AEC-Q200 |
| Approvals | - |
| Part Status | Active |
| Lead Spacing | - |
| Time to Trip | 1s |
| Current - Max | 100A |
| Mounting Type | Surface Mount |
| Voltage - Max | 33V |
| Package / Case | 1812 (4532 Metric), Concave |
| Thickness (Max) | 0.057" (1.46mm) |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Current - Trip (It) | 1.6A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 750mA |
| Resistance - Initial (Ri) (Min) | 110 mOhms |
| Resistance - Post Trip (R1) (Max) | 390 mOhms |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.32 | $0.31 | $0.31 |
