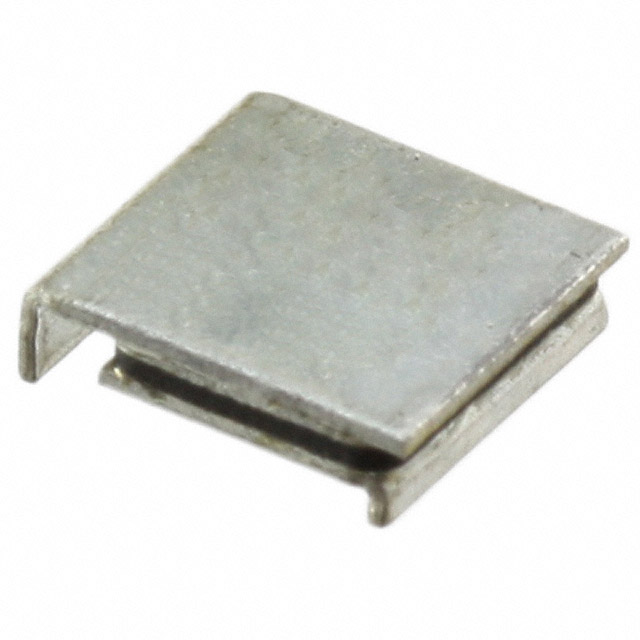

Image is for reference only , See Product Specifications
ASMD100F-2
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | ASMD100F-2 |
| Description: | PTC RESET FUSE 30V 900MA 2SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, ASMD |
| Ratings | AEC-Q200 |
| Approvals | - |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Lead Spacing | - |
| Time to Trip | 20s |
| Current - Max | 40A |
| Mounting Type | Surface Mount |
| Voltage - Max | 30V |
| Package / Case | 2-SMD |
| Thickness (Max) | 0.118" (3.00mm) |
| Size / Dimension | 0.287" L x 0.201" W (7.30mm x 5.10mm) |
| Current - Trip (It) | 2.16A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 900mA |
| Resistance - Initial (Ri) (Min) | 98 mOhms |
| Resistance - Post Trip (R1) (Max) | 480 mOhms |
In Stock 2721 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.81 | $0.79 | $0.78 |
