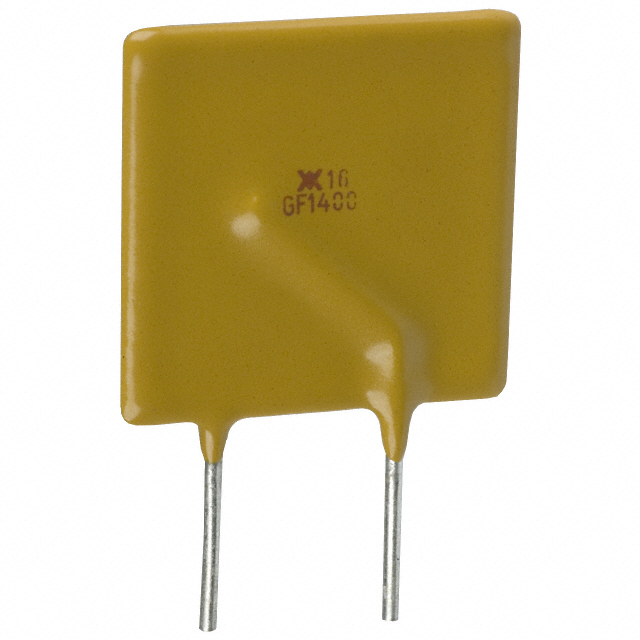

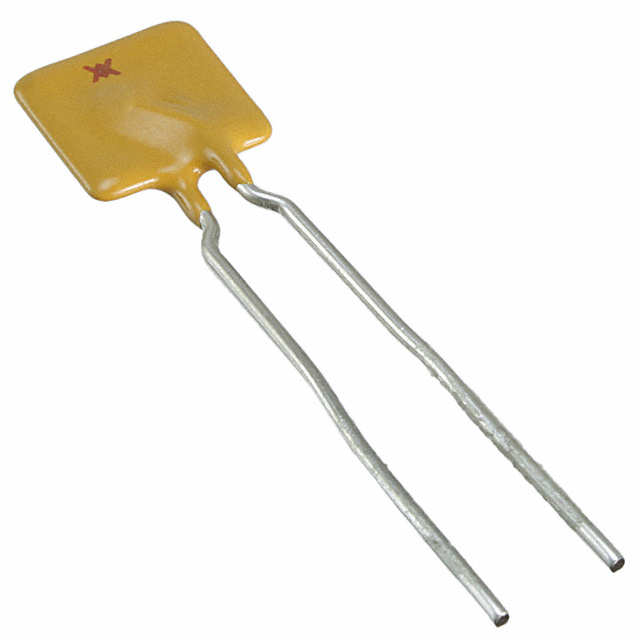

Image is for reference only , See Product Specifications
AHRF650S
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | AHRF650S |
| Description: | PTC RESET FUSE 16V 6.5A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, AHRF |
| Ratings | AEC-Q200 |
| Approvals | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Lead Spacing | 0.200" (5.08mm) |
| Time to Trip | 7s |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.500" L x 0.118" W (12.70mm x 3.00mm) |
| Current - Trip (It) | 13.7A |
| Height - Seated (Max) | 0.874" (22.20mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 6.5A |
| Resistance - Initial (Ri) (Min) | 9 mOhms |
| Resistance - Post Trip (R1) (Max) | 26 mOhms |
In Stock 0 pcs
