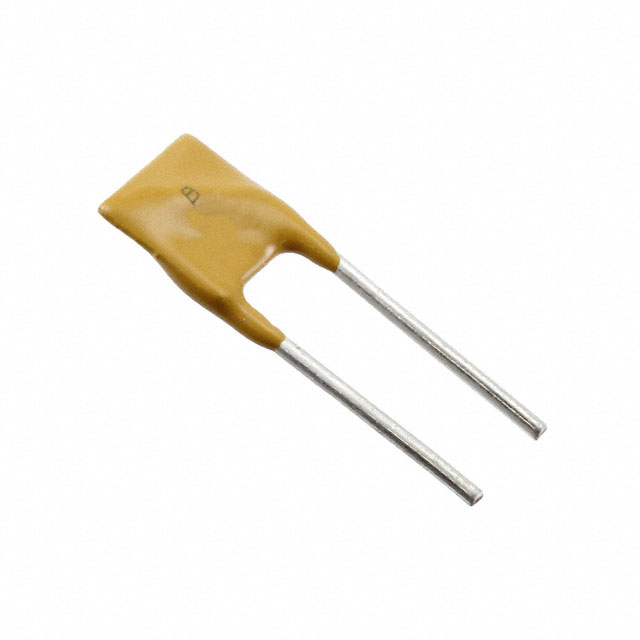

Image is for reference only , See Product Specifications
AHRF600-2
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | AHRF600-2 |
| Description: | PTC RESET FUSE 16V 6A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, AHRF |
| Ratings | AEC-Q200 |
| Approvals | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Lead Spacing | 0.200" (5.08mm) |
| Time to Trip | 6.5s |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.441" L x 0.118" W (11.20mm x 3.00mm) |
| Current - Trip (It) | 12A |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 6A |
| Resistance - Initial (Ri) (Min) | 10 mOhms |
| Resistance - Post Trip (R1) (Max) | 32 mOhms |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.37 | $0.36 | $0.36 |
