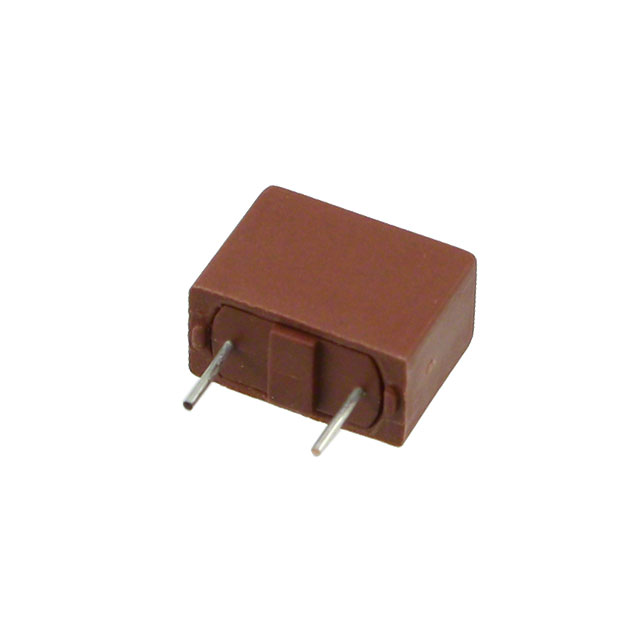

Image is for reference only , See Product Specifications
80412500440
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | Fuses |
| Data Sheet: | 80412500440 |
| Description: | FUSE BOARD MOUNT 2.5A 250VAC RAD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | Fuses |
| Color | - |
| Series | 804 |
| Approvals | CQC, KC, PSE, UL, VDE |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Packaging | Bulk |
| Part Status | Active |
| Melting I²t | 136 |
| Mounting Type | Through Hole |
| Response Time | Slow Blow |
| Package / Case | Radial, Box |
| Size / Dimension | 0.488" L x 0.252" W x 0.362" H (12.40mm x 6.40mm x 9.20mm) |
| DC Cold Resistance | 0.0349 Ohms |
| Voltage Rating - AC | 250V |
| Current Rating (Amps) | 2.5A |
| Operating Temperature | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 150A |
In Stock 760 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $3.11 | $3.05 | $2.99 |
Request Quote
