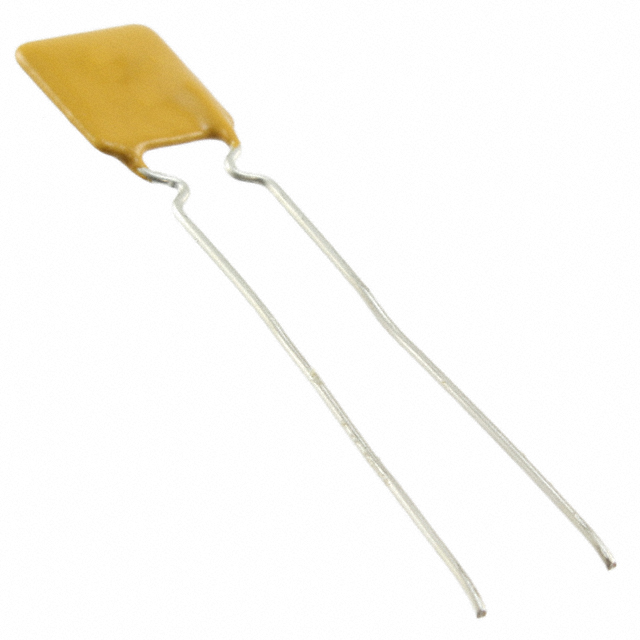

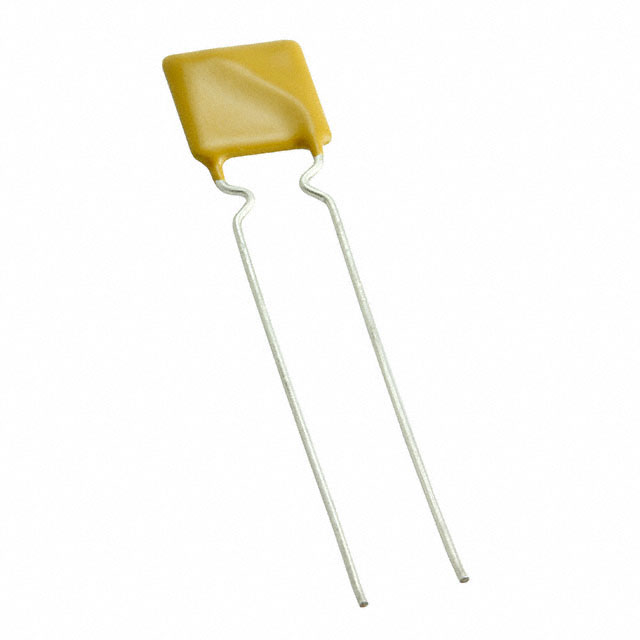

Image is for reference only , See Product Specifications
72R075XPR
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | 72R075XPR |
| Description: | PTC RESET FUSE 72V 750MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | POLY-FUSE®, 72R |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Lead Spacing | 0.201" (5.10mm) |
| Time to Trip | 6.3s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 72V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) |
| Current - Trip (It) | 1.5A |
| Height - Seated (Max) | 0.598" (15.20mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 750mA |
| Resistance - Initial (Ri) (Min) | 250 mOhms |
| Resistance - Post Trip (R1) (Max) | 600 mOhms |
In Stock 1867 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.63 | $0.62 | $0.61 |
