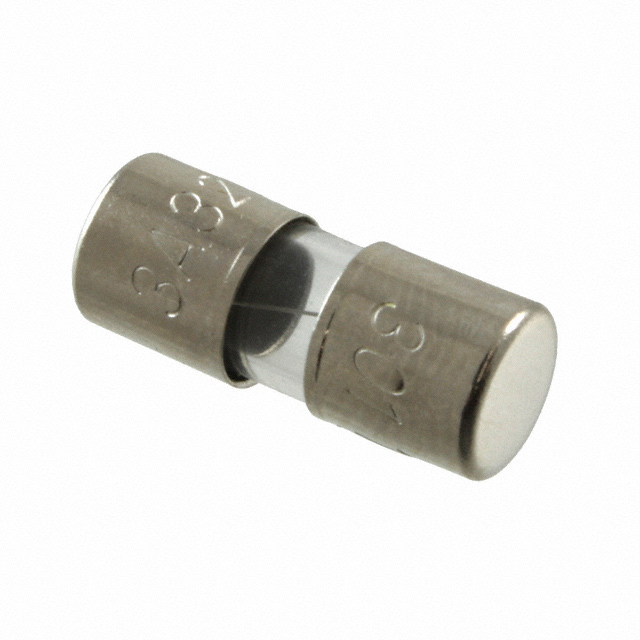

Image is for reference only , See Product Specifications
0229005.HXSP
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | Fuses |
| Data Sheet: | 0229005.HXSP |
| Description: | FUSE GLASS 5A 125VAC/VDC 2AG |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | Fuses |
| Color | - |
| Series | 229 |
| Approvals | CE, CSA, PSE, UL |
| Fuse Type | Cartridge, Glass |
| Packaging | Bulk |
| Part Status | Active |
| Melting I²t | 267 |
| Mounting Type | Holder |
| Response Time | Slow Blow |
| Package / Case | 2AG, 5mm x 15mm |
| Size / Dimension | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) |
| DC Cold Resistance | 0.0186 Ohms |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 125V |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 400A |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.87 | $0.85 | $0.84 |
