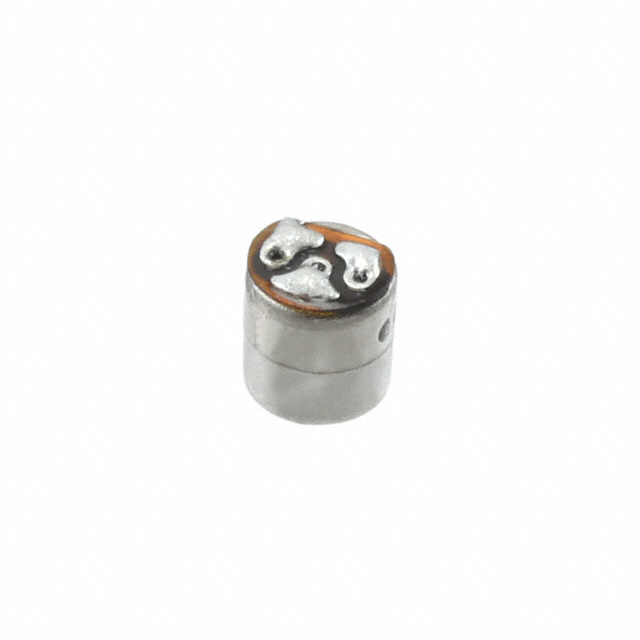

Image is for reference only , See Product Specifications
TO-24609-000
| Manufacturers: | Knowles |
|---|---|
| Product Category: | Microphones |
| Data Sheet: | TO-24609-000 |
| Description: | MICROPHONE |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Knowles |
| Product Category | Microphones |
| Type | Electret Condenser |
| Shape | Square |
| Series | TO |
| Direction | Omnidirectional |
| Impedance | 4.4 kOhms |
| Packaging | Tray |
| S/N Ratio | - |
| Output Type | Analog |
| Part Status | Active |
| Sensitivity | -56dB ±3dB @ 74dB SPL |
| Termination | Solder Pads |
| Height (Max) | 0.053" (1.35mm) |
| Port Location | Side |
| Voltage Range | 0.9V ~ 1.6V |
| Frequency Range | 100Hz ~ 7kHz |
| Voltage - Rated | 1.3V |
| Current - Supply | 50µA |
| Size / Dimension | 0.141" L x 0.141" W (3.57mm x 3.57mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $21.69 | $21.26 | $20.83 |
